The ‘How’ of the Reverse Osmosis Purification Process:

Right now the RO Purification Process is the best available on the market. It also is one of the safest and cheapest methods for getting great tasting pure water. Join us as we show you the 11 step process our machine uses to produce your purified water.

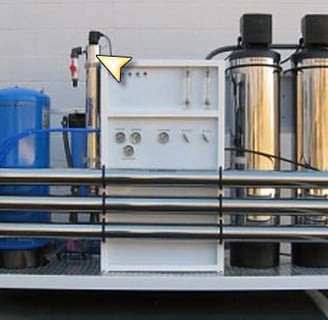

STEP 1: AG Pre-Filtration

Cartridge type, removes particulate matter down to 20 microns. It stands 4 feet for maximum filtration effectiveness!

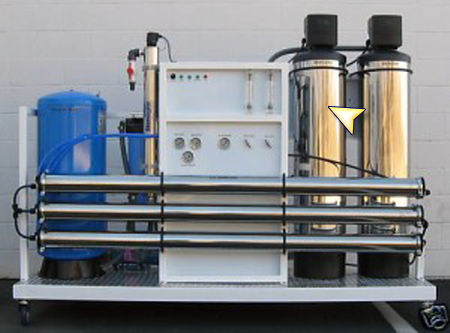

STEP 2: Carbon

An activated carbon cartridge filter that removes chlorine, chloramine, solvents, lead, insecticides, gasses, and other harmful contaminants. Works as a water softener, without the use of salt and drawing hardness particles together and crystallizing them. Includes an automatic backwashing system. It stands 4 feet for maximum filtration effectiveness!

STEP 3: 5 Micron Pre-Filter

Removes particles, sediments, and algae. (Back side of machine. Looks Identical to Post Carbon Filter)

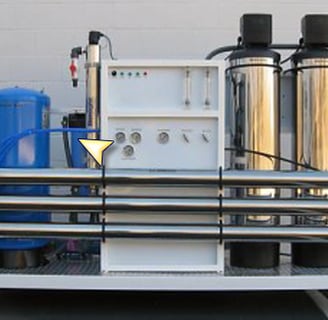

STEP 4: R.O. Pump

High pressure, stainless steel pump to boot water pressure to 160 lbs. for maximum membrane efficiency.

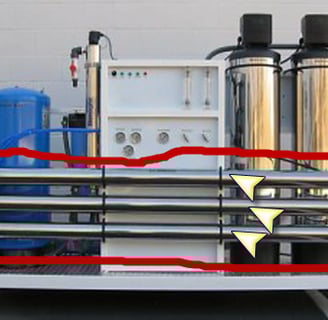

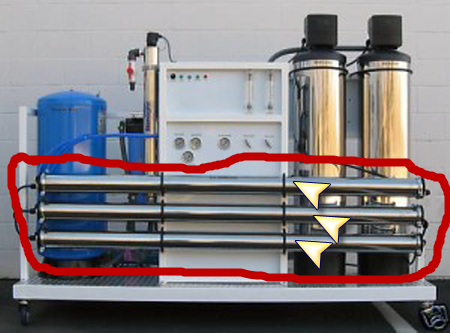

STEP 5: Reverse Osmosis Membrane

Water is forced through a semi permeable, .0002 micron membrane, allowing only pure water molecules to pass.

STEP 6: Storage Tanks

Water is stored in FDA approved tanks. These tanks store 300 gallons of water each and we have 2. Ozone is pumped into these tanks to kill 99% of all bacteria. (Safety First!)

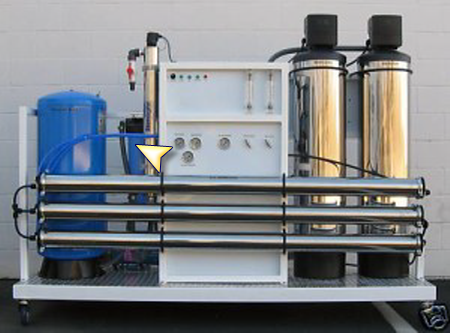

STEP 7: Repressure System

12 GPM pressure pump assures constant water supply from storage tanks to post carbon filter, ultraviolet sterilizer, and faucets.

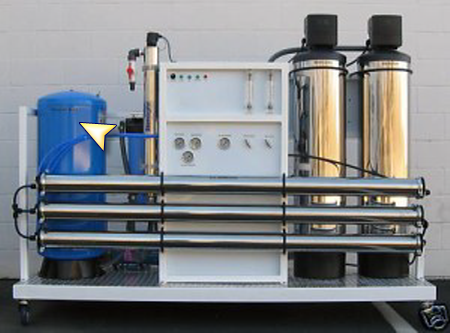

STEP 8: Pressure Tank

32 gallon pressure tank assures a constant flow of water to the filler and prolongs pump life.

STEP 9: Post Carbon Filtration

Water travels through a 4.5in x 20in coconut shell carbon block filter, polishing it for an exceptionally smooth taste.

Post Carbon filter located toward back of machine. Blue and partially visible.

STEP 10: Ultraviolet Sterilizer

Stainless steel sterilizer eliminates up to 99.9% of all bacteria.

STEP 11: Ozone

Ozone is added to both inline and our water storage tanks to prevent future bacterial growth. Keeps water fresh and great tasting!
